PVDF Casting Film Extrusion Line

Technical Information:

1. Control system: Siemens, ABB, Omron, Schneider, Dynisco, Gefran etc

2. Full set of servo motor, with the servo controller

3. Material available: PVDF

4. Width range: 1250 - 2200mm

5. Thickness: 0.02 - 0.03mm

6. Max. Linear Speed: 30m/min

7. Output range: 120 - 200kg/h

8. Layers distribution: A, A/B, A/B/A

Application of PVDF Film:

1. PVDF solar plate back film: The film is used for solar plate back film to protect the battery, mainly for aging resistance and abrasion resistance.

2. PVDF outdoor decoration film: The film is used for the protection of glass, external walls, doors and Windows, outdoor billboards of outdoor buildings, mainly for aging resistance and abrasion resistance;

3. PVDF battery diaphragm: Membrane is used for diaphragm applications in fuel cells and lithium ion polymer batteries.

4. PVDF filtration membrane: Membrane filtration membrane is used for water purification treatment, divided into ultrafiltration membrane and microfiltration membrane. It is mainly used for sewage treatment, seawater desalination, and removal of macromolecules, bacteria, sediment, salt and other impurities.

5. PVDF piezoelectric film: PVDF piezoelectric film has the advantages of wide frequency response, large dynamic range, high sensitivity of power and electricity conversion, high mechanical property strength, easy matching of acoustic impedance, etc.

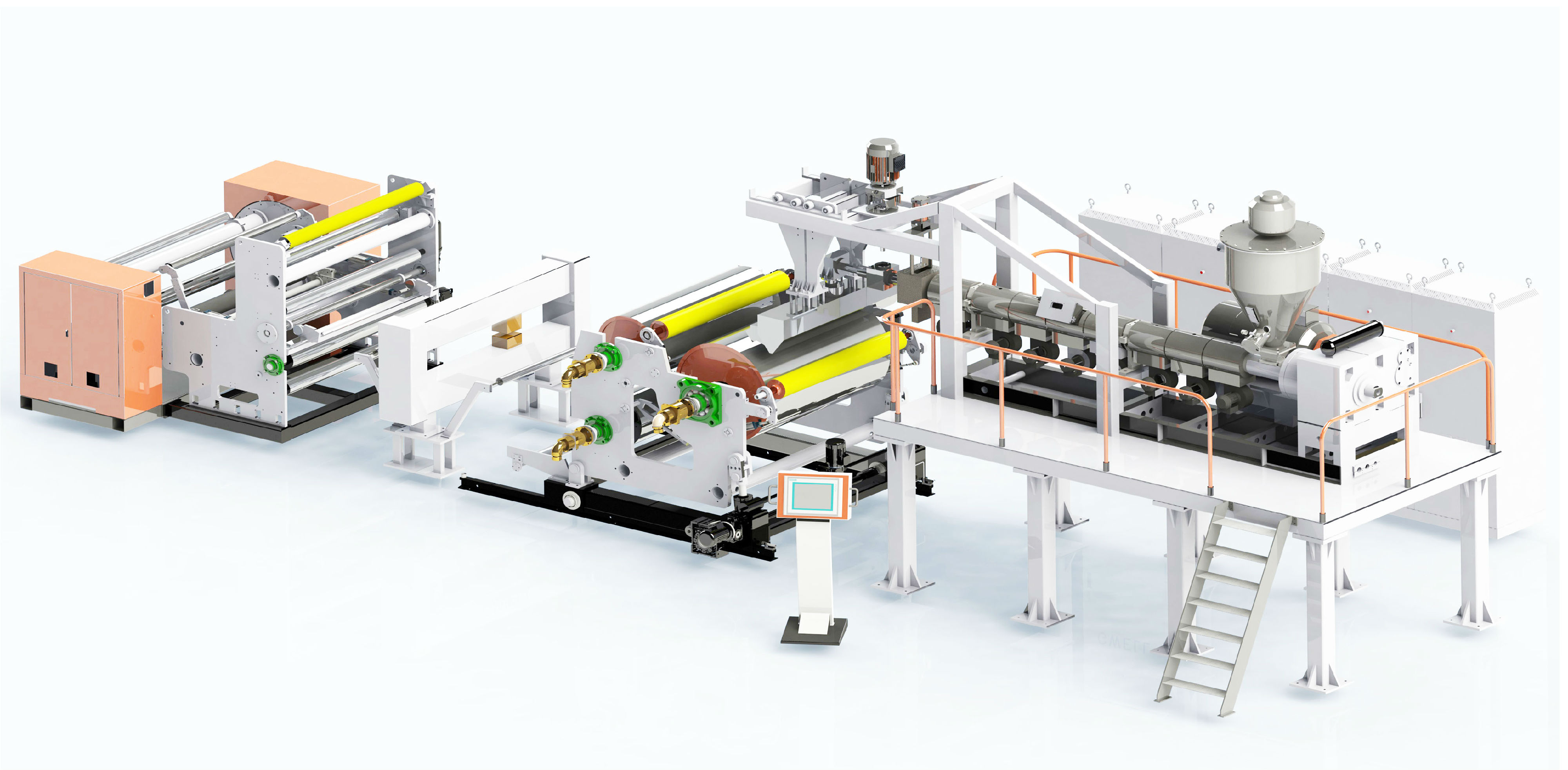

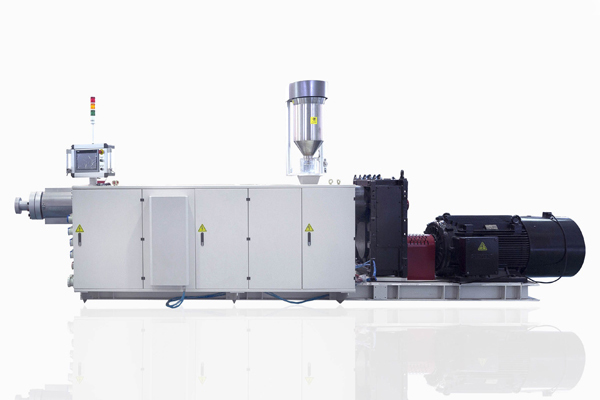

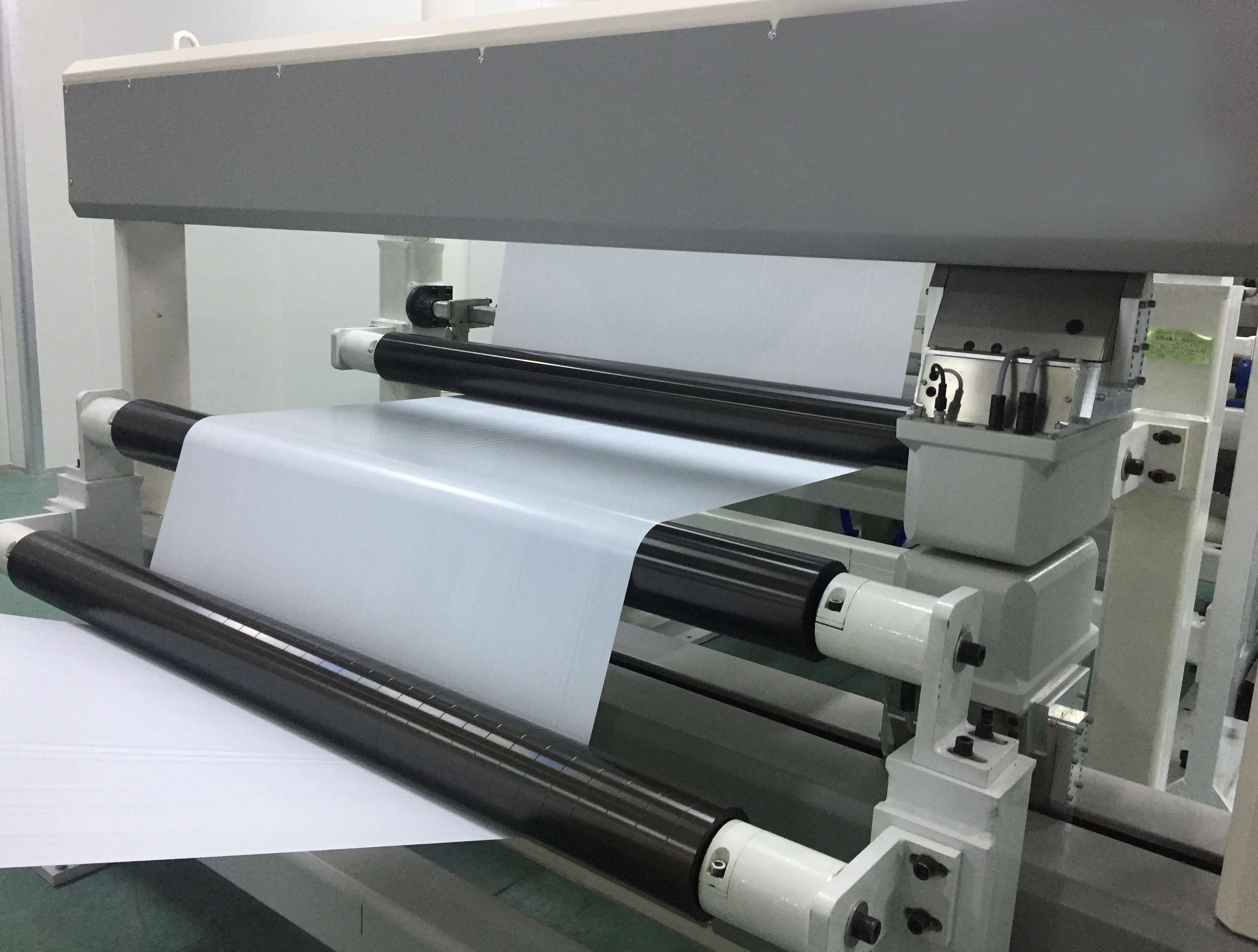

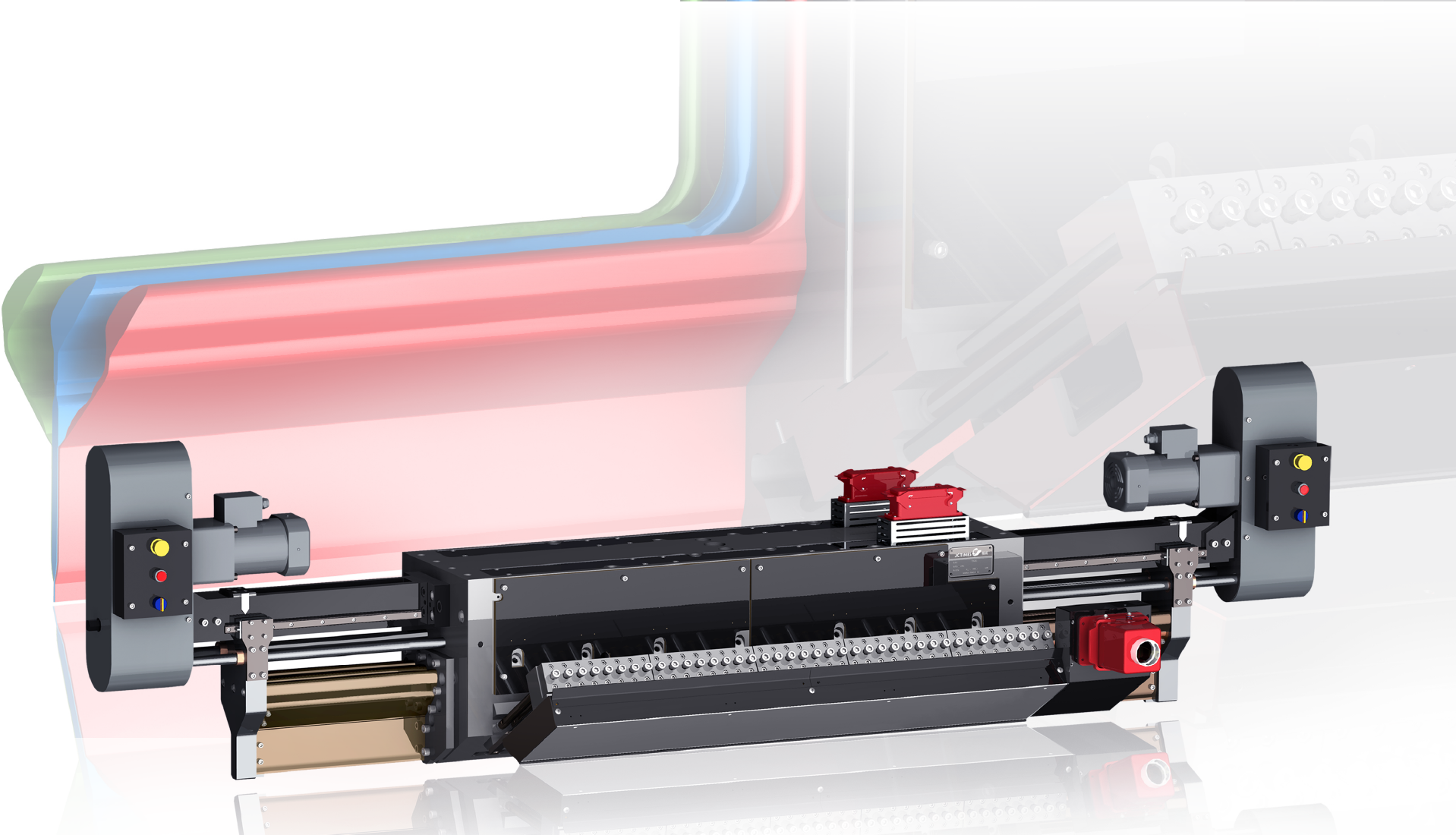

Machine Photos:
